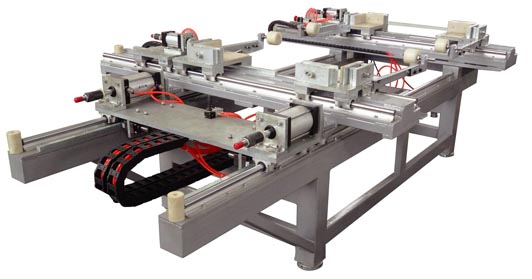

全自動裝框機
Automatic framing machine
全自動裝框是角碼鉚接式鋁合金，矩形組框的專用設備，由氣缸，直線導軌及鋼結構機架組成，可以實現組件承壓完畢后，組件的鋁合金邊框固定，從而簡化了工人的作業難度，節約時間，提高了產品的質量。適用于多種型材，有螺釘與無螺釘鋁合金邊框的組框。組框和外形尺寸在設定的范圍內通過鎖緊齒條定位，任意調整尺寸，并通過了調氣缸進行精度微調，滿足用于不同組框尺寸的要求。
電源：220V 氣壓0.6—0.8mPa
最大組框尺寸： 1150*2100*50mm
最小組框尺寸： 350*600*35mm
Automatic Corner code framing machine is riveting style aluminum, rectangular group box of specialized equipment, from the cylinder, linear rails, and steel frame composed of laminated components can be achieved after the aluminum frame components fixed, thus simplifying the operation more difficult for workers to save time and improve product quality. Applicable to a variety of profiles, there are screws and non-screw aluminum frame of the group box. Group box dimensions within the limits set by the locking rack positioning, it can adjust its size, and adopted the tone for the cylinder for precision fine-tuning to meet the group box sizes for different requirements.
Power:220V
pressure: 0.6—0.8MPA
Max framing dimension:1150*2100*50mm
Min framing dimension: 350*600*35mm
|
