X(S)FM—5橡塑加壓翻轉式

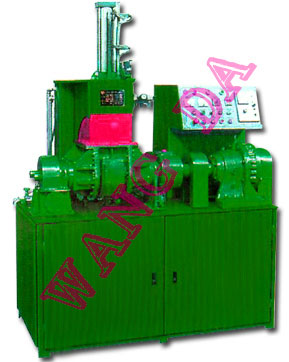

X(S)FM Rubber Plastic Pressure Turnover Internal Mixing Machine
該系列5升以下機型為實驗型密煉機、翻轉式實驗密煉機，與傳統下落式實驗密煉機相比，有諸多優點：清洗余料方便、省時、易清除死角余料；因此，更換膠料品種方便、快捷；省電、低能耗；操作簡單、故障少，安全可靠，廣泛應用于大、中、小橡膠塑料制品廠。
Experimental models of the Series 5 liters mixer,mixing machine overturned experiment with the
traditional fate of experimental mixing machine, Mscleaning materials have many advantages: convenience,
time-saving, easy to remove dead ends more than expected; Therefore, the replacement of rubber varieties
easier and quicker; energy saving. Low energy consumption; simple, small fault, security, reliability,
which are widely used in large, small, rubber, plastics factory. |
| Mode[型號 |
X(S)FM—5 |
| Mixing Capacity密煉容量 L |
5 |
| Mian Power 驅動電機 kw |
7.5 |
| BiakeMotor 翻轉電機 kw |
0.75 |
| TiLting Angle 翻轉角度 |
110 |
| Air Compressor空壓機 kw |
1.5 |
| Dust Collector 集塵器 |
HLL-1O |
| Cooling Water 水冷機(煉膠)Mpa |
O.2-0.4 |
| Heating Steam汽加熱(煉塑)Mpa |
O.5-0.8 |
| Electric Heaterr電加熱(煉塑)kw |
4 |
| Machine Weight機器重量kg |
1200 |
| Overall Dimensions代羝主Cm( L長xW寬 xH高 ) |
160×100×190 | |
